ME2L-203-76U3M

Ship to Stock in: Warehouse

ME2L-203-76U3M(1920×1080,USB3.0,Mono)

★★★★★4.92649 Reviews

Wholesale Price

Model: ME2L-203-76U3M

Order No: ME2L-203-76U3M

SKU: 1721126035764245913

Category: Daheng

Brand: Daheng

Size: 29.00mm, 29.00mm, 29.00mm

Weight: 47.00g

Product Selection Engineer: Zhangyuchong

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

ME2L-203-76U3M

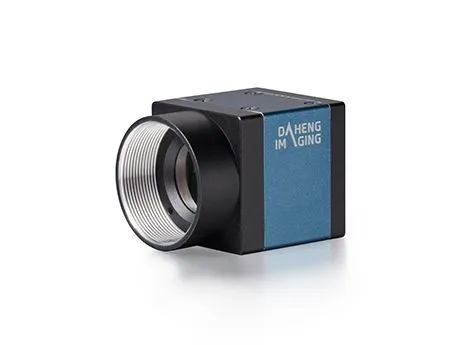

Mercury II Lite (ME2L-U3) series digital camera is an area array industrial digital camera independently developed by Daheng Image, with low cost, high performance and high reliability, with an external size of only 29mm(W× 29mm(H)×28.1mm(L), it will be a good choice for users who have strict requirements on camera cost and size. ME2L-203-76U3M adopts progressive exposure CMOS sensor, transmits image data through USB3.0 data interface, integrates I/O (GPIO) interface, provides cable locking device, can work stably in various harsh environments, is a high-reliability, cost-effective industrial digital camera products. The ME2L-203-76U3M has the characteristics of high definition, low noise, compact design, easy installation and use, and is suitable for industrial testing, medical treatment, scientific research, education, security and other fields.

ME2L-203-76U3M

Support multi-frame grayscale control functionCustom ROI is supported, and the frame rate can be increased by reducing the resolutionProgrammable settings for gain and exposure timeAuto gain, auto exposureThree working modes: continuous acquisition/soft trigger acquisition/external trigger acquisitionOutputable image data format: Mono8 / Mono10Parameter groups are supportedHorizontal and vertical mirroring functions are supportedA 16KB user data area is provided to save algorithm coefficients, parameter configurations, etcRugged all-metal housing and cable lockingIt supports GenICam™ and USB3 Vision®, and can be directly connected to third-party software such as HALCON, MERLIC, LabVIEW, etcCE and RoHS compliant and certifiedThe driver is optimized for 32bit / 64bit Windows and supports operating systems and architectures such as Linux, Android, ARMv7 and ARMv8Free SDK and abundant source code for secondary development instances

ME2L-203-76U3M

★ ★ ★ ★ ★
