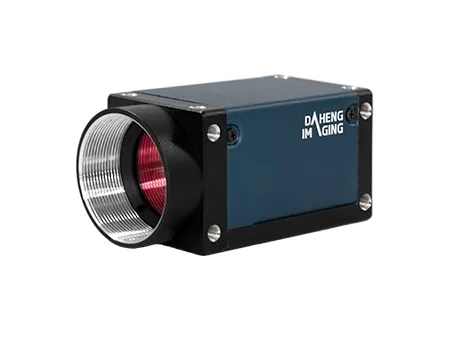

The MER3-506-58G3M-P camera adopts the Sony Pregius S back-illuminated CMOS sensor with global exposure, which transmits image data through the GigE data interface, with a transmission speed of up to 2.5Gbit/s, supports Power over Ethernet, and integrates I/O (GPIO) interface, provides cable locking device, can work stably in various harsh environments, and the camera is equipped with screw mounting holes on all sides. It can be flexibly installed in different structures, and is a high-reliability industrial digital camera product.
The sequence control function supports the configuration of multiple sets of function parameters
Two trigger types: Frame Start / Frame Burst Start
Two exposure modes: Standard Exposure Mode / Minimal Exposure Mode
Gamma, pixel sampling, digital shift, black level
Lookup table, parameter group, counter, and timer functions
Burst acquisition and level-controlled exposure functions are supported
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc
| Model | MER3-506-58G3M-P |
| brand | Daheng image |
| resolution | 2448×2048 |
| Frame rate (fps) | 58.60 |
| Sensor manufacturers | Sony |
| sensor | 1/1.8" IMX547 Global shutter CMOS |
| Cell size | 2.74μm |
| Pixel depth | 8 bit，12 bit |
| Data interface | 2.5GigE |
| Lens mount | C |
| spectrum | black and white |
| Image data format | Mono8，Mono12 |
| Signal-to-noise ratio | 39.82 dB |
| Exposure time | Standard: 3μs ~ 20μs, actual step size: 1μs; 21μs ~ 1s, actual step size: 1 line cycle; Minimum: 1 ~ 2.4μs, actual step: 0.1μs |
| gain | 0dB ~ 16dB |
| Binning | Not supported |
| Pixel sampling | Sensor：1×1，2×2 |
| Mirror flip | Horizontal mirroring, vertical mirroring |
| I/O interface | 1 opto-decoupled isolated input, 2 bidirectional GPIOs |
| Rated power | < 5.5 W @ 12V / PoE |
| Power supply requirements | 12 ~ 24 VDC or PoE |
| Operating temperature | 0°C ~ +50°C |
| Storage temperature | -20°C ~ +70°C |
| Operating humidity | 10% ~ 80% |
| Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 50.6 mm |
| weight | 69 g |
| Certifications & Standards | CE，RoHS，GenICam，GigE Vision |
