Two trigger types: Frame Start / Frame Burst Start
Two exposure modes: Standard Exposure Mode / Minimal Exposure Mode
Gamma, pixel sampling, digital shift, black level
Lookup table, parameter group, counter, and timer functions
Burst acquisition and level-controlled exposure functions are supported
Ambient light presets, color conversion, and saturation functions are supported
Remove the parameter range limit, and you can expand the range values of parameters such as exposure, gain, white balance, etc
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc

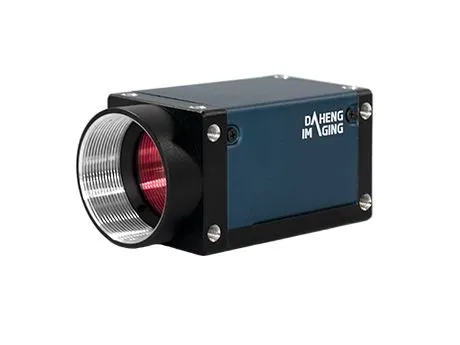

Model | MER3-1221-24G3C-P |
Brand | Daheng image |
Resolution | 4096×3000 |
Frame rate (fps) | 23.9 |
Sensor manufacturers | Sony |
Sensor | 1/1.1" IMX545 Global shutter CMOS |
Cell size | 2.74μm |
Pixel depth | 8 bit，12 bit |
Data interface | 2.5gige |
Lens mount | C |
Spectrum | Colored |
Image data format | Bayer RG8，Bayer RG12，RGB8，BGR8，Mono8 |
Signal-to-noise ratio | 39.83 db |
Exposure time | Standard: 3μs ~ 20μs, actual step size: 1μs; 21μs ~ 1s, actual step size: 1 line cycle; Minimum: 1 ~ 2.4μs, actual step: 0.1μs |
Gain | 0db ~ 16db |
Binning | Not supported |
Pixel sampling | Sensor：1×1，2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 opto-decoupled isolated input, 2 bidirectional gpios |
Rated power | < 5.25 W @ 12 V / poe |
Power supply requirements | 12 ~ 24 VDC or poe |
Operating temperature | 0°C ~ +50°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 50.6 mm |
Weight | 69 g |
Certifications & Standards | CE，rohs，genicam，gige Vision |
">
