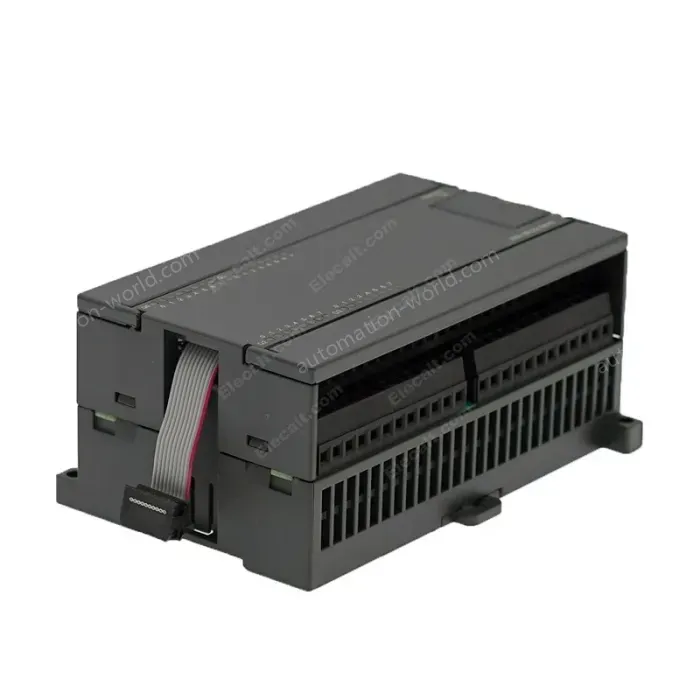

Model | EM222 32 outputs |
Product Description | 32DO,24V DC;Transistor; Optical isolation with high immunity |
The bus current consumption | 140mA |
Power loss | 5.2W |
Number of digital outputs | 32 |
Signal output type· | Transistor |
Isolation | Optical coupler |
Rated voltage | 24V DC |
Permissible voltage range | 20.4~28.8V DC |
Rated current | 0.75A |
Lamp load | 5W |
Cable Length (Shielded) | 500m |
Cable Length (unshielded) | 150m |
Switching frequency | / |
Lifetime contact mechanical | / |
Lifetime contact mechanical(rated load voltage) | / |
Dimensions(W x H x D)(mm) | 137.5×80×62 |
Order Number | 222-1BL22-0XA0 |
