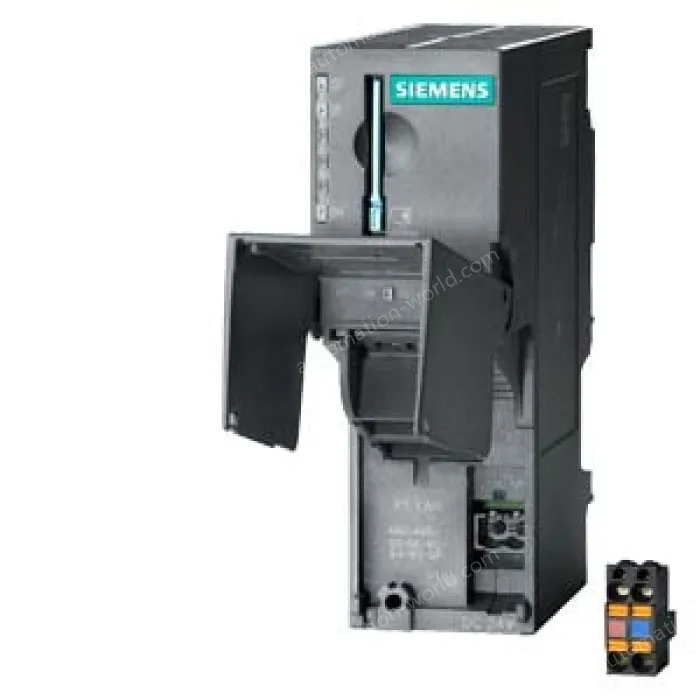

IM 153-4 PN

Ship to Stock in: Warehouse

IM 153-4 PN

★★★★★4.94850 Reviews

Wholesale Price

Model: 6ES7153-4AA01-0XB0

Order No:

SKU: 10000003909601

Category: PLCs

Brand: SIEMENS

Size: 13.10CM, 15.30CM, 5.20CM,0.00cm

Weight: 0.00KG

Product Selection Engineer: wuShengpeng

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

6ES7153-4AA01-0XB0 IM153-4 PN IO FOR 12 MODULES S7-300

Artikelnummer

6ES7153-4AA01-0XB0

		SIMATIC DP, ET 200M INTERFACE IM 153-4 PN IO FOR MAX. 12 S7-300 MODULES, EXTENDED FUNCTIONS: ISOCHRONEOUS REALTIME COMMUNICATION CLASS 1 AND 2, MODULE EXCHANGE W/O PG, OPERATION W/O MMC, MAINTENANCE NEW IO MODULES ARE SUPPORTED
General information
Vendor identification (VendorID)		002AH
Device identifier (DeviceID)		0302H
Supply voltage
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
permissible range (ripple included), lower limit (DC)		20.4 V
permissible range (ripple included), upper limit (DC)		28.8 V
External protection for supply cables (recommendation)		In a construction with grounded reference potential, a fuse is necessary for redundant interface modules (Recommendation: 2.5 A)
Mains buffering
● Mains/voltage failure stored energy time		5 ms
Input current
Current consumption, max.		600 mA
Inrush current, typ.		4 A
I²t		0.09 A²·s
Output voltage
Rated value (DC)		5 V
Output current
for backplane bus (5 V DC), max.		1.5 A
Power losses
Power loss, typ.		6 W; Typical
Address area
Addressing volume
● Inputs		192 byte
● Outputs		192 byte
Hardware configuration
Number of modules per DP slave interface, max.		12
Communication functions
Bus protocol/transmission protocol		PROFINET IO
Interrupts/diagnostics/status information
Diagnostics indication LED
● Connection to network LINK (green)		Yes
● Transmit/receive RX/TX (yellow)		Yes
Isolation
Isolation checked with		500 V DC
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		60 °C
Air pressure
● Operating altitude above sea level, max.		2 000 m
Dimensions
Width		40 mm
Height		125 mm
Depth		118 mm
Weights
Weight, approx.		215 g; approx.
last modified:		25.09.2014

6ES7153-4AA01-0XB0

SIMATIC DP, Connection ET 200M IM 153-4 PN IO for max. 12 S7-300 modules, extended functions: Isochronous real-time Communication Class 1 and 2, module replacement without PG operation without MMC, maintenance Support of new IO modules
