The Star shifting interface converter products include three major series:

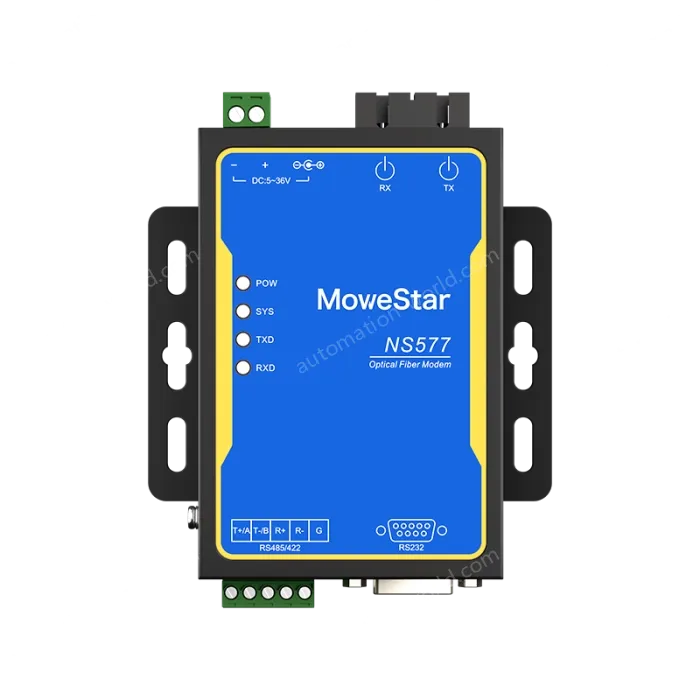

Industrial serial optical fiber converter can convert the industrial site RS232/485/422 serial electrical signal into optical fiber signal transmission, to achieve long-distance transmission requirements, improve signal anti-interference ability;
Industrial serial cable converter, to achieve the industrial site RS232 and RS485/422 signals between the conversion, as well as multiple serial bus concentrator function, provide active/passive, isolated/non-isolated and other types of choice;
Industrial serial port repeater can realize the isolation relay function of RS232/485/422 signal in industrial field. By isolating and amplifies the signal, it can extend the communication distance and anti-interference.
● RS-232/RS-485/RS-422 interface available
● EIA RS-232, RS-485, RS-422 Standard
● 600W/ anti-lightning strike
● 15kv anti-static protection
● desktop installation
Technical parameters | |
Standard | Compliant with EIA RS-232, RS-485, RS-422 |
Interface | |
Interface form | Serial Port: Electrical characteristics, Meet RS-232/RS-422/RS-485 Physical characteristics, Industrial terminal block Optical interface: Single multi-mode optional, SC/ST/FC optional |
Communication rate | |
Baud Rate | 300bps~115.2Kbps, rate adaptive signal |
LEDs | |
Power indicator | POW |
Data transmission indicator light | TX, RX |
Power | |
Power Supply | DC5V or 9～30V |
Interface | BNC coaxial input, industrial terminal block |
Power | <1W |
Overload protection | Support |
Lightning protection | 600W/ms anti-lightning strike |
Static protection | 15kv anti-static |
Physical Characteristics | |
Shell | Aluminum housing, IP40 protection |
Dimension | 78mm×25mm×85mm |
Transmission distance | |
Serial port line | RS-232,15m@9600bps RS-422/RS-485,1.2km@9600bps |
Multi-mode fiber | 850nm/1310nm,2- 5Km |
Single mode fiber | 1310nm,20km/40km 1550nm,60km/80km |
Working Environment | |
Operating Temperature | -40°C~85°C |
Storage temperature | -40°C~85°C |
Ambient Humidity | 5%~95% |
Warranty | |
Warranty | 5 Years |
Certification | |
Certification | CE, FCC |
