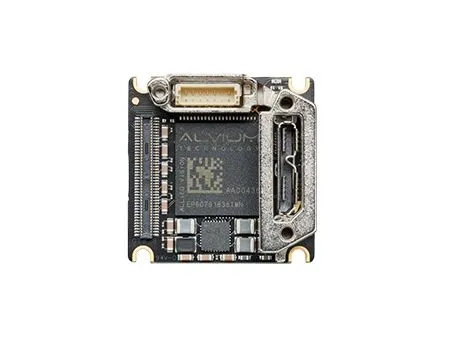

The Alvium 1800 U-120c features an ON Semi AR0135CS CMOS sensor with a frame rate of 52 fps at 1.2 million pixels and an IR-cut filter for machine vision and embedded visionDual-application design provides high-quality images and reduces host load. The innovative Alvium SoC enables image correction and pre-processing tasks not on the host but in the camera, with lower power consumption. Software and hardware can be easily integrated with Alvium cameras, reducing development time.
ALVIUM TECHNOLOGY FOR BOARD-LEVEL IMAGE PROCESSING
The USB3 interface supports GenICam SFNC functionality
Auto Gain, Auto Exposure, Auto White Balance, Auto Ribbon Control, Auto Function Algorithm Control
Support demosaicing, black level, DPC, Gamma, ROI, saturation, mirror flip X/Y and other functions
Synchronous output mode: trigger preparation, trigger input
Support temperature monitoring (sensor board), test image, LED brightness adjustment, firmware upgrade
Platform-based, common software for operating different models of Alvium cameras
Micro-B USB 3.1 Gen 1 connector
Precise sensor-lens mount calibration
Enclosures: Available in bare-plate, open-enclosure or enclosure
A variety of lens mounts are available: C-mount, CS-mount or M12-mount
Top and bottom mounting (standard M3 mounting holes), front panel mounting (standard M2 mounting holes)
Easy-to-install drivers and code samples
Model | Alvium 1800 U-120c |
Brand | Allied Vision |
Resolution | 1280×960 |
Frame rate (fps) | 52 |
Sensor manufacturers | On Semi |
Sensor | 1/3" AR0135CS Global shutter CMOS |
Cell size | 4.8μm |
Pixel depth | 8 bit，10 bit，12 bit |
Data interface | USB3.0 |
Lens mount | C，CS，M12 |
Spectrum | Colored |
Image data format | Bayergr8/10/10p/12/12p，BGR8，RGB8，ycbcr411_8，ycbcr422_8，ycbcr8_8，Mono8/10/10p/12/12p |
Dynamic range | 63 db |
Rated power | 1.3 W @ USB； 1.5 W @ 5 VDC |
Power supply requirements | USB or 5 VDC |
Operating temperature | +5°C ~ +65°C, package temperature |
Mechanical Dimensions (W×H×L) | 26 mm × 26 mm × 14 mm (bare, standard), 30 mm × 26 mm × 14 mm (bare, 90°) |
Weight | 15 g (bare board) |
Certifications & Standards | CE，rohs |
