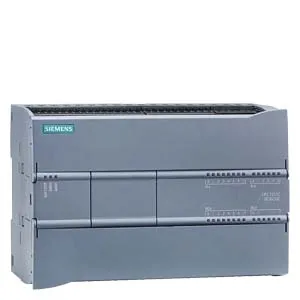

      6ES7217-1AG40-0XB0
      • 6ES7217-1AG40-0XB0

      6ES7217-1AG40-0XB0

      ★ ★ ★ ★ ★ 4.9 2357 Reviews

      Wholesale Price

      Model: 6ES7217-1AG40-0XB0

      Order No:

      SKU: 10000005656501

      Category: S7-1200

      Brand: SIEMENS

      Condition: New Sealed Under Guarantee

      Size: 11.30CM, 15.90CM, 8.80CM

      Weight: 0.00Kg

      Product Selection Engineer:

      Leading

      Shipping

      Warehouse

      China

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews Q&A
      6ES7217-1AG40-0XB0 CPU 1217C, DC/DC/DC, 14DI/10DQ/2AI/2AQ
      Artikelnummer6ES7217-1AG40-0XB0
      SIMATIC S7-1200, CPU 1217C, COMPACT CPU, DC/DC/DC, 2 PROFINET PORT ONBOARD I/O: 14 DI (10 DI 24VDC / 4 DI 1.5V DC DIFFERENTIAL); 10 DQ (6 DQ 24VDC; 0,5A / 4 DQ 1.5V DC DIFFERENTIAL); 2 AI 0- 10V DC, 2 AQ 0- 20MA; POWER SUPPLY: DC 20.4 - 28.8 V DC, PROGRAM/DATA MEMORY: 125 KB
      General information
      Engineering with
      ● Programming packageSTEP 7 V13 or higher
      Display
      with displayNo
      Supply voltage
      24 V DCYes
      permissible range, lower limit (DC)20.4 V
      permissible range, upper limit (DC)28.8 V
      Load voltage L+
      ● Rated value (DC)24 V
      ● permissible range, lower limit (DC)20.4 V
      ● permissible range, upper limit (DC)28.8 V
      Input current
      Current consumption (rated value)500 mA; Typical
      Current consumption, max.1.6 A; 24 V DC
      Inrush current, max.12 A; at 28.8 V DC
      Encoder supply
      24 V encoder supply
      ● 24 VPermissible range: 20.4V to 28.8V
      Output current
      Current output to backplane bus (DC 5 V), max.1 600 mA; Max. 5 V DC for SM and CM
      Power losses
      Power loss, typ.12 W
      Memory
      Type of memoryEEPROM
      Usable memory for user data125 kbyte
      Work memory
      ● Integrated125 kbyte
      ● expandableNo
      Load memory
      ● Integrated4 Mbyte
      ● Plug-in (SIMATIC Memory Card), max.2 Gbyte; with SIMATIC memory card
      Backup
      ● presentYes; maintenance-free
      ● without batteryYes
      CPU processing times
      for bit operations, typ.0.085 µs; / Operation
      for word operations, typ.1.7 µs; / Operation
      for floating point arithmetic, typ.2.3 µs; / Operation
      CPU-blocks
      Number of blocks (total)DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used
      OB
      ● Number, max.Limited only by RAM for code
      Data areas and their retentivity
      retentive data area in total (incl. times, counters, flags), max.10 kbyte
      Flag
      ● Number, max.8 kbyte; Size of bit memory address area
      Address area
      I/O address area
      ● Inputs1 024 byte
      ● Outputs1 024 byte
      Process image
      ● Inputs, adjustable1 kbyte
      ● Outputs, adjustable1 kbyte
      Hardware configuration
      Number of modules per system, max.3 comm. modules, 1 signal board, 8 signal modules
      Time of day
      Clock
      ● Hardware clock (real-time clock)Yes
      ● Deviation per day, max.+/- 60 s/month at 25 °C
      ● Backup time480 h; Typical
      Digital inputs
      Number of digital inputs14; Integrated
      ● of which, inputs usable for technological functions6; HSC (High Speed Counting)
      integrated channels (DI)14; of which, 10x 24 V DC and 4x 1.5 V differential
      m/p-readingYes
      Number of simultaneously controllable inputs
      all mounting positions
      — up to 40 °C, max.14
      Input voltage
      ● Rated value (DC)24 V; for 24 V DC inputs only
      ● for signal "0"5 V DC at 1 mA
      ● for signal "1"15 VDC at 2.5 mA
      Input delay (for rated value of input voltage)
      for standard inputs
      — Parameterizable0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms
      — at "0" to "1", min.0.2 ms
      — at "0" to "1", max.12.8 ms
      for interrupt inputs
      — ParameterizableYes
      for counter/technological functions
      — ParameterizableYes; Single phase: 1 at 1 MHz, 3 at 100 kHz, 3 at 30 kHz; 6 differential: 1 at 1 MHz, 3 at 80 kHz, 1 at 20 kHz
      Cable length
      ● Cable length, shielded, max.500 m; 50 m for technological functions
      ● Cable length unshielded, max.300 m; For technological functions: No
      Digital outputs
      Number of digital outputs10; of which, 6x 24 V DC and 4x 1.5 V differential
      ● of which high-speed outputs4; 1 MHz Pulse Train Output
      integrated channels (DO)10
      short-circuit protectionNo; to be provided externally
      Switching capacity of the outputs
      ● with resistive load, max.0.5 A
      ● on lamp load, max.5 W
      Output voltage
      ● for signal "0", max.0.1 V; with 10 kOhm load
      ● for signal "1", min.20 V
      Output current
      ● for signal "1" rated value0.5 A
      Output delay with resistive load
      ● "0" to "1", max.1 µs
      ● "1" to "0", max.3 µs
      Switching frequency
      ● of the pulse outputs, with resistive load, max.1 MHz
      Relay outputs
      ● Max. number of relay outputs, integrated0
      Cable length
      ● Cable length, shielded, max.500 m
      ● Cable length unshielded, max.150 m
      Analog inputs
      Number of analog inputs2
      Integrated channels (AI)2; 0 to 10 V
      Input ranges
      ● VoltageYes
      Input ranges (rated values), voltages
      ● 0 to +10 VYes
      ● Input resistance (0 to 10 V)≥100k ohms
      Cable length
      ● Cable length, shielded, max.100 m; twisted and shielded
      Analog outputs
      Number of analog outputs2
      Integrated channels (AO)2; 0 to 20 mA
      Cable length
      ● Cable length, shielded, max.100 m; Shielded, twisted wire pair
      Analog value creation
      Integration and conversion time/resolution per channel
      ● Resolution with overrange (bit including sign), max.10 bit
      ● Integration time, parameterizableYes
      ● Conversion time (per channel)625 µs
      Encoder
      Connectable encoders
      ● 2-wire sensorYes
      1st interface
      Interface typePROFINET
      PhysicsEthernet, 2-port switch, 2*RJ45
      IsolatedYes
      Automatic detection of transmission speedYes
      AutonegotiationYes
      AutocrossingYes
      Functionality
      ● PROFINET IO DeviceYes
      ● PROFINET IO ControllerYes
      PROFINET IO Controller
      ● Prioritized startup supported
      — Number of IO Devices, max.16
      Communication functions
      S7 communication
      ● supportedYes
      ● as serverYes
      ● As clientYes
      Open IE communication
      ● TCP/IPYes
      ● ISO-on-TCP (RFC1006)Yes
      ● UDPYes
      Web server
      ● supportedYes
      ● User-defined websitesYes
      Test commissioning functions
      Status/control
      ● Status/control variableYes
      ● VariablesInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
      Forcing
      ● ForcingYes
      Diagnostic buffer
      ● presentYes
      Traces
      ● Number of configurable Traces2; Up to 512 KB of data per trace are possible
      Integrated Functions
      Number of counters6
      Counter frequency (counter) max.1 MHz
      Frequency meterYes
      controlled positioningYes
      PID controllerYes
      Number of alarm inputs4
      Number of pulse outputs4
      Limit frequency (pulse)1 MHz
      Galvanic isolation
      Galvanic isolation digital inputs
      ● Galvanic isolation digital inputs500V AC for 1 minute
      ● between the channels, in groups of1
      Galvanic isolation digital outputs
      ● Galvanic isolation digital outputs500V AC for 1 minute
      ● between the channels, in groups of1
      Permissible potential difference
      between different circuits500 V DC between 24 V DC and 5 V DC
      EMC
      Interference immunity against discharge of static electricity
      ● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2Yes
      — Test voltage at air discharge8 kV
      — Test voltage at contact discharge6 kV
      Interference immunity to cable-borne interference
      ● Interference immunity on supply lines acc. to IEC 61000-4-4Yes
      ● Interference immunity on signal lines acc. to IEC 61000-4-4Yes
      Surge immunity
      ● on the supply lines acc. to IEC 61000-4-5Yes
      Immunity against conducted interference induced by high-frequency fields
      ● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6Yes
      Emission of radio interference acc. to EN 55 011
      ● Limit class A, for use in industrial areasYes; Group 1
      ● Limit class B, for use in residential areasYes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011
      Degree and class of protection
      Degree of protection to EN 60529
      ● IP20Yes
      Standards, approvals, certificates
      CE markYes
      UL approvalYes
      cULusYes
      RCM (formerly C-TICK)Yes
      FM approvalYes
      Marine approval
      ● Marine approvalYes
      Ambient conditions
      Operating temperature
      ● Min.-20 °C
      ● max.60 °C
      ● horizontal installation, min.-20 °C
      ● horizontal installation, max.60 °C
      ● vertical installation, min.-20 °C
      ● vertical installation, max.50 °C
      Storage/transport temperature
      ● Min.-40 °C
      ● max.70 °C
      Air pressure
      ● Operation, min.795 hPa
      ● Operation, max.1 080 hPa
      ● Storage/transport, min.660 hPa
      ● Storage/transport, max.1 080 hPa
      Relative humidity
      ● Operation, max.95 %; no condensation
      Vibrations
      ● Vibrations2G wall mounting, 1G DIN rail
      ● Operation, checked according to IEC 60068-2-6Yes
      Shock test
      ● checked according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
      Climatic and mechanical conditions for storage and transport
      Climatic conditions for storage and transport
      Free fall
      — Drop height, max. (in packaging)0.3 m; five times, in dispatch package
      Temperature
      — Permissible temperature range-40 °C to +70 °C
      Relative humidity
      — Permissible range (without condensation) at 25 °C95 %
      Mechanical and climatic conditions during operation
      Climatic conditions in operation
      Temperature
      — Min.-20 °C
      — max.60 °C
      Air pressure acc. to IEC 60068-2-13
      — Permissible air pressure1080 to 795 hPa
      — Permissible operating height-1000 to 2000 m
      Pollutant concentrations
      — SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
      Configuration
      programming
      Programming language
      — LADYes
      — FBDYes
      — SCLYes
      Cycle time monitoring
      ● can be setYes
      Dimensions
      Width150 mm
      Height100 mm
      Depth75 mm
      Weights
      Weight, approx.530 g
      last modified:13.10.2014
      6ES7217-1AG40-0XB0
      ProductArticle Number (Market Facing Number)6ES7217-1AG40-0XB0Product Description SIMATIC S7-1200, CPU 1217C, compact CPU, DC/DC/DC, 2 PROFINET ports onboard I/O: 10 DI 24 V DC; 4 DI RS-422/485; 6 DO 24 V DC; 0.5 A; 4 DO RS-422/485; 2 AI 0-10 V DC, 2 AO 0-20 mA power supply: DC 20.4-28.8 V DC, program/data memory 250 KBProduct familyCPU 1217CProduct Lifecycle (PLM)PM300:Active ProductPrice dataRegion Specific PriceGroup / Headquarter Price Group212 / 212List Price Show pricesCustomer Price Show pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : EAR99HEstimated dispatch time1 Day/DaysNet Weight (kg)0,486 KgPackaging Dimension11,30 x 15,90 x 8,80Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4025515082033UPC887621775865Commodity Code85371091LKZ_FDB/ CatalogIDST72Product Group4509Group CodeR132Country of originChinaCompliance with the substance restrictions according to RoHS directiveSince: 12.12.2013Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates
      Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Lead

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Lead monoxide (lead oxide)

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      lblREACHCode0236 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      lblREACHCode0236

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      4,4'-isopropylidenediphenol (Bisphenol A, BPA)

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      SCIP number
      Classifications
      VersionClassification
      eClass1227-24-22-07
      eClass627-24-22-07
      eClass7.127-24-22-07
      eClass827-24-22-07
      eClass927-24-22-07
      eClass9.127-24-22-07
      ETIM7EC000236
      ETIM8EC000236
      ETIM9EC000236
      IDEA43565
      UNSPSC1532-15-17-05
      6ES7217-1AG40-0XB0
      SIMATIC S7-1200, CPU 1217C, compact CPU, DC/DC/DC, 2 PROFINET ports onboard I/O: 10 DI 24 V DC; 4 DI RS-422/485; 6 DO 24 V DC; 0.5 A; 4 DO RS-422/485; 2 AI 0-10 V DC, 2 AO 0-20 mA power supply: DC 20.4-28.8 V DC, program/data memory 250 KB
      6ES7217-1AG40-0XB0
      ProductArticle Number (Market Facing Number)6ES7217-1AG40-0XB0Product Description SIMATIC S7-1200, CPU 1217C, compact CPU, DC/DC/DC, 2 PROFINET ports onboard I/O: 10 DI 24 V DC; 4 DI RS-422/485; 6 DO 24 V DC; 0.5 A; 4 DO RS-422/485; 2 AI 0-10 V DC, 2 AO 0-20 mA power supply: DC 20.4-28.8 V DC, program/data memory 250 KBProduct familyCPU 1217CProduct Lifecycle (PLM)PM300:Active ProductPrice dataRegion Specific PriceGroup / Headquarter Price Group212 / 212List Price Show pricesCustomer Price Show pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : EAR99HEstimated dispatch time1 Day/DaysNet Weight (kg)0,486 KgPackaging Dimension11,30 x 15,90 x 8,80Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4025515082033UPC887621775865Commodity Code85371091LKZ_FDB/ CatalogIDST72Product Group4509Group CodeR132Country of originChinaCompliance with the substance restrictions according to RoHS directiveSince: 12.12.2013Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates
      Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Lead

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Lead monoxide (lead oxide)

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      lblREACHCode0236 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      lblREACHCode0236

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      4,4'-isopropylidenediphenol (Bisphenol A, BPA)

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      SCIP numberd82c7684-1c47-4802-8e5e-e9e13f6063f7Classifications
      VersionClassification
      eClass1227-24-22-07
      eClass627-24-22-07
      eClass7.127-24-22-07
      eClass827-24-22-07
      eClass927-24-22-07
      eClass9.127-24-22-07
      ETIM7EC000236
      ETIM8EC000236
      ETIM9EC000236
      IDEA43565
      UNSPSC1532-15-17-05

      4.9

      ★ ★ ★ ★ ★

      12 views

      5 star 12 (100%)
      4 star 0 (0%)
      3 star 0 (0%)
      2 star 0 (0%)
      1 star 0 (0%)

      Reviews

      All Reviews（12） Image/Video（0） 5 star（12）
      S**e

      ★ ★ ★ ★ ★ 29/08/2024

      High quality craftsmanship, stands out in the market

      (533)

      N**h

      ★ ★ ★ ★ ★ 09/08/2024

      Consistent performance, no issues since installation

      (739)

      S**a

      ★ ★ ★ ★ ★ 16/06/2024

      Robust construction, withstands high temperatures and pressures

      (880)

      A**x

      ★ ★ ★ ★ ★ 07/06/2024

      High quality components, reliable performance

      (620)

      N**‌

      ★ ★ ★ ★ ★ 06/06/2024

      High quality, meets all my expectations

      (903)

      L**m

      ★ ★ ★ ★ ★ 11/04/2024

      Precision engineering, meets stringent industrial standards

      (634)

      E**a

      ★ ★ ★ ★ ★ 20/03/2024

      Excellent build quality, fits perfectly in my automation system

      (737)

      W**m

      ★ ★ ★ ★ ★ 15/03/2024

      Precision components, ensures accurate readings

      (790)

      E**n

      ★ ★ ★ ★ ★ 05/03/2024

      Quality materials, long-lasting performance

      (664)

      E**n

      ★ ★ ★ ★ ★ 22/02/2024

      Excellently made, ensures smooth operation

      (829)

      A**a

      ★ ★ ★ ★ ★ 26/12/2023

      Top-notch quality, worth the investment

      (691)

      O**a

      ★ ★ ★ ★ ★ 19/12/2023

      Durable design, withstands harsh industrial conditions

      (571)

      Reviews

      Q How to make a payment?

      E****R 18/11/2024

      A We accept various payment methods including bank transfers, credit cards, and PayPal. Please refer to our payment page during checkout for detailed instructions on how to complete your payment. If you have any questions or need assistance with payment, please contact our customer support team.

      18/11/2024

      Q How will the products be shipped?

      T****k 16/08/2024

      A We ship products through reliable courier services such as DHL, UPS, and FedEx. Shipping fees and delivery times may vary depending on the destination. You will receive a tracking number once your order has been dispatched, allowing you to track the status of your shipment. Please note that shipping times may vary based on location and availability.

      16/08/2024

      Q How is warranty provided?

      L****Y 08/05/2024

      A We offer a warranty on all of our products. The warranty period and conditions vary depending on the product category. For specific warranty information, please refer to the product page or your purchase agreement. If you encounter any issues with a product during the warranty period, please contact our customer service team with your proof of purchase, and we will guide you through the warranty claim process.

      08/05/2024

      Picks for you
